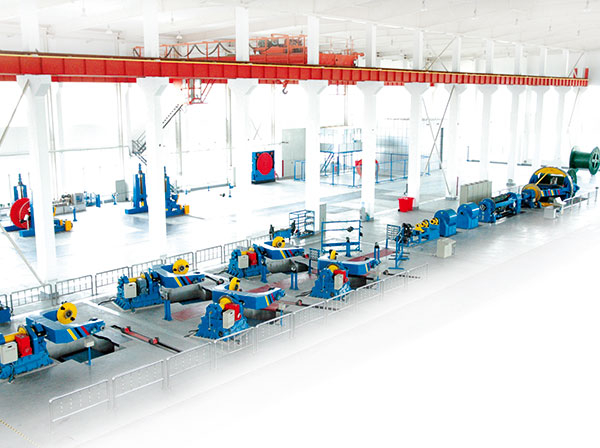

Drum Twister Machines
Drum Twister Machines
Technical Parameters
The equipment is used to form medium and low voltage or medium and high voltage power cables, high-voltage or ultra-high-voltage split conductor stranded bodies; in addition, it can also be steel wire armored or copper wire shielded.
Product Features
⦁ 2000 to 4200 take-up reel series coils to meet different cable diameters, different lengths of cable forming requirements;
⦁ the programmable controller and touch screen of the machine unified command and management of the machine's startup, operation and synchronization Rotary rotation, etc .;
⦁ The pay-off motor, the twisted-body rotary motor, the winding motor, the traction motor and the cable motor are all AC frequency conversion motors, and the frequency converter is used to control the speed. Take-up motor is controlled by DC motor, SSD Parker 514C series DC speed control device. Stable performance, low failure rate and easy maintenance;
⦁ The cable pitch can be set, modified and displayed on the touch screen. And can set the left and right cable, jog and fast movement adjustment on the touch screen;
⦁ The take-up motor uses DC motor. The take-up tension can be set, modified and displayed on the touch screen, and can be jogged in the forward and reverse directions .
⦁ The pay-off frame of the machine adopts a separate motor to rotate it. It can rotate synchronously with the rotating take-up frame, or it can be jogged separately.

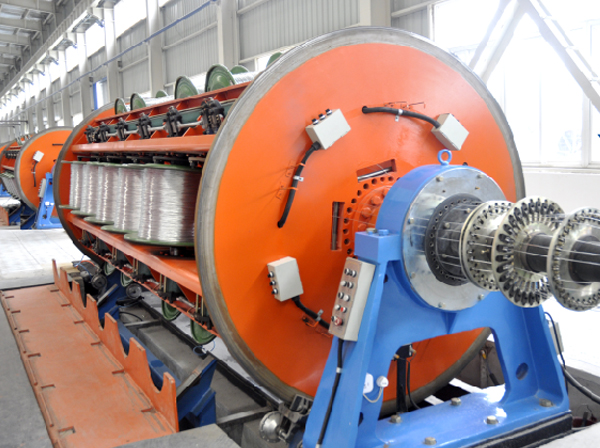

Frame type stranding machine

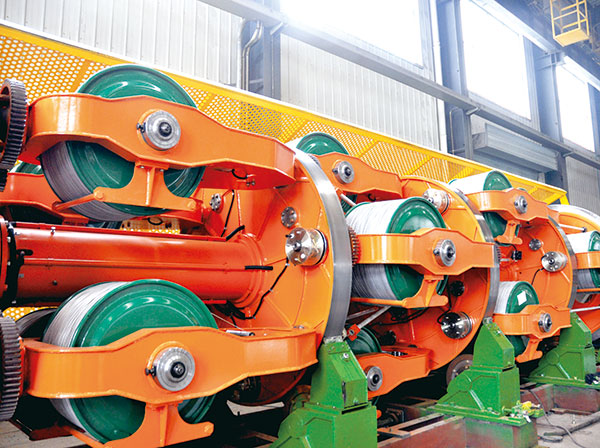

Cradle Stranding Machine
