THICKNESS CHECK CALIX

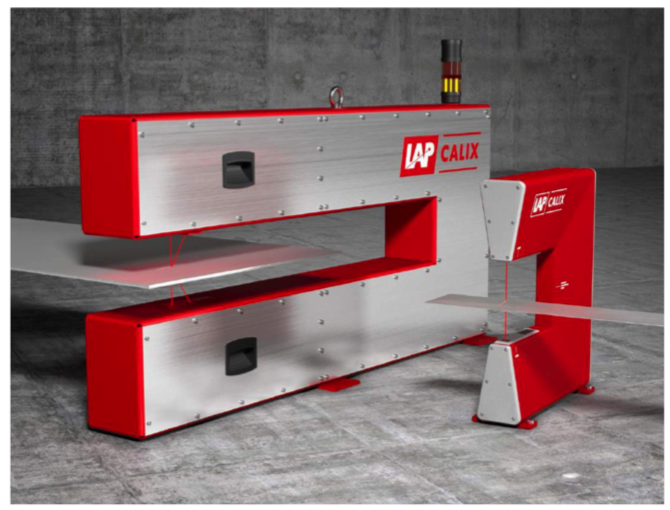

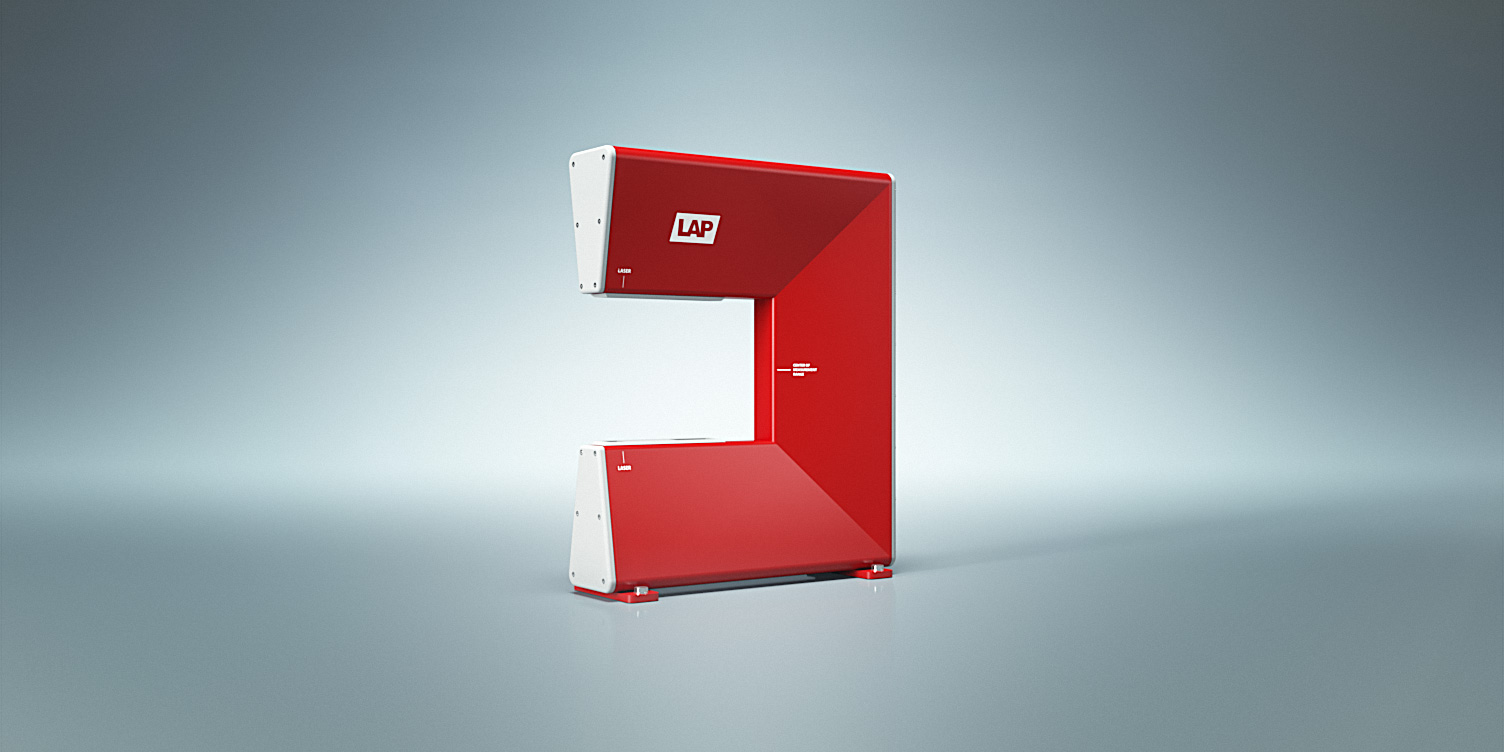

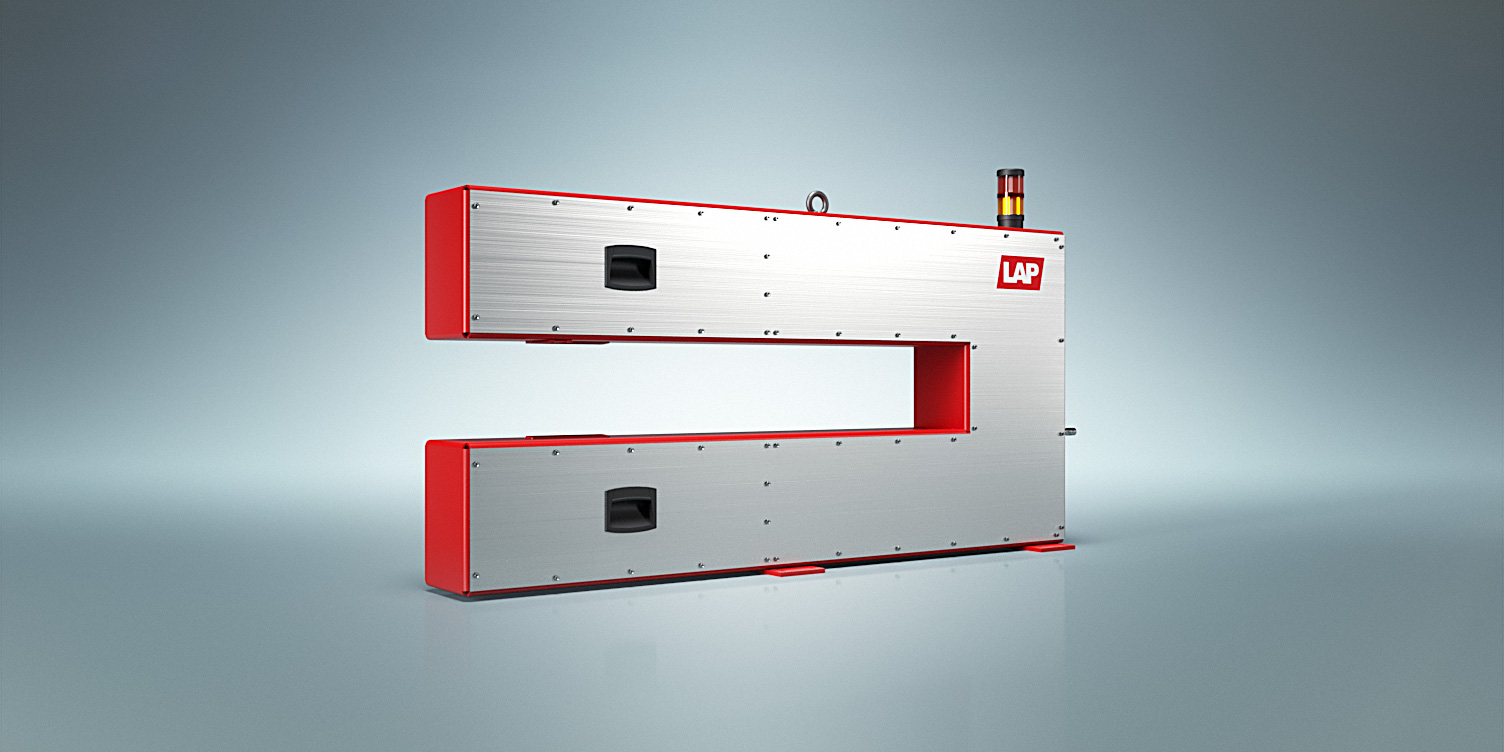

CALIX - Our solution for non-contact thickness measurement of flat products
YOUR GUARANTEE OF QUALITY FOR THE THICKNESS MEASUREMENT OF SHEET METAL AND STRIP STEEL
For the manufacturing of a perfect cold strip, many factors are crucial. Our measuring frames specifically check the thickness-related quality parameters of the strip steel or steel sheet. Free of radioactive radiation, laser sensors are used in the cold strip areas that do not require protection measures with laser class 2, or only low precautions when using laser class 3B sensors.

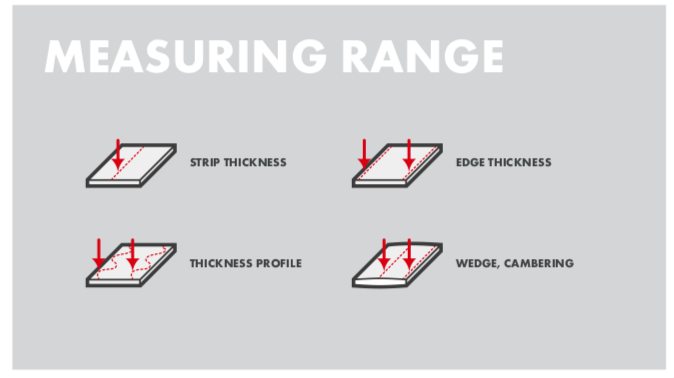

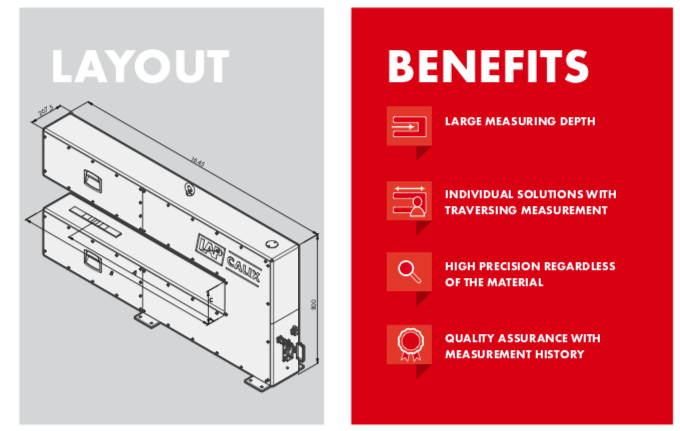

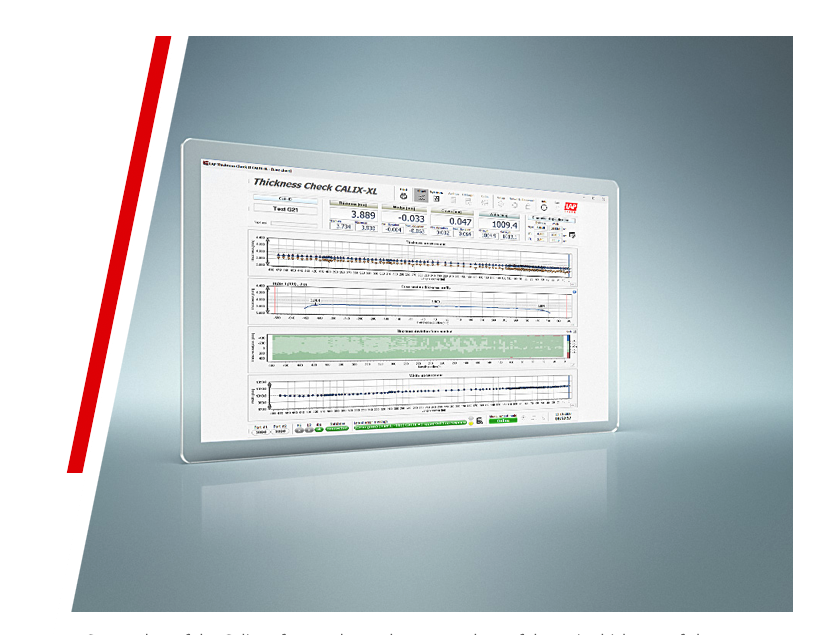

The installation of our measurement systems is quick and uncomplicated for our customers. The CALIX is integrated into the line with its C-shaped frame across the material flow. Our solutions with and without traversing determine all important parameters for quality assurance, including strip thickness, edge thickness, wedge or cambering, and measure the complete thickness profile. Thus, you have full process control in the current production.
FEATURES OF THE CALIX
EASY TO USE
The measuring system is able to perform a calibration during production to ensure the desired measurement result.
HIGH ACCURACY
LAP's CALIX achieves leading accuracy in the market at comparable measuring ranges.
TEMPERATURE INDEPENDENT
The LAP measuring system can be used in harsh environments with material temperatures up to 200 °

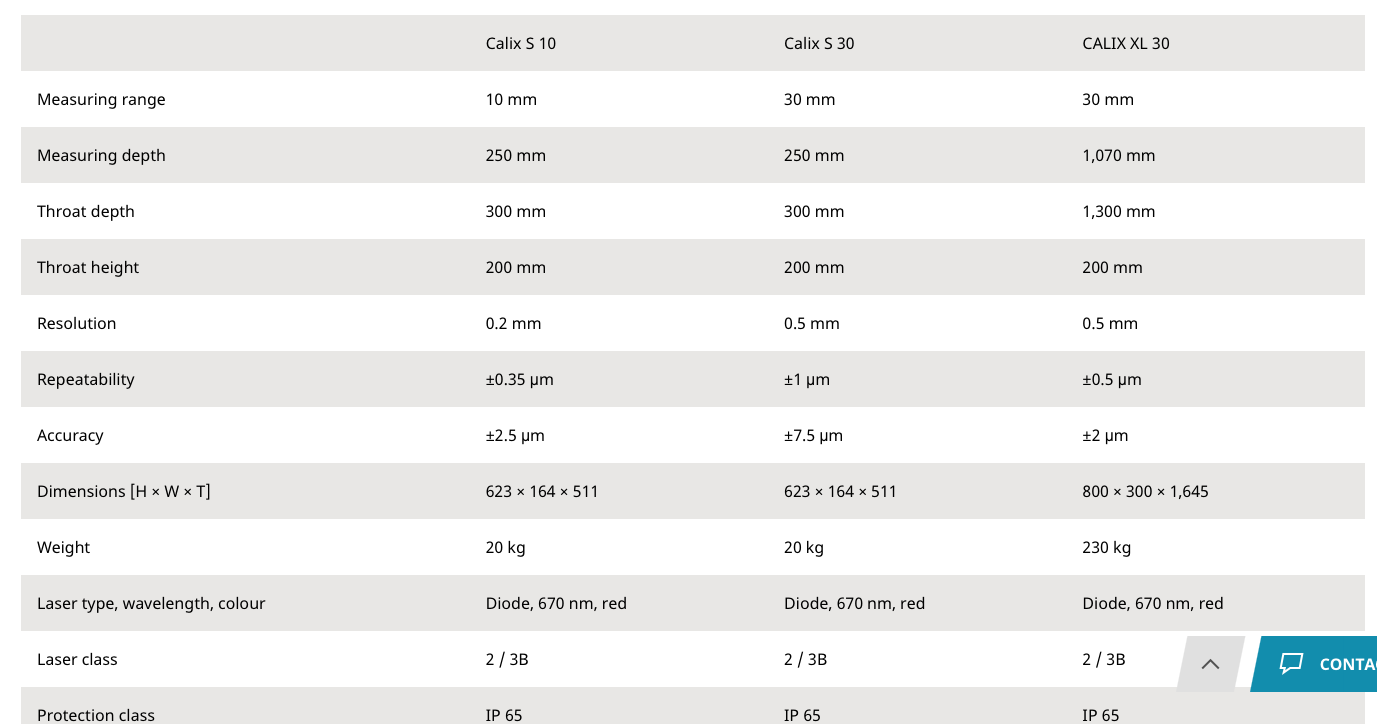

TECHNICAL DATA
STRAIGHTNESS CHECK X-LINE
LAP's laser gauge for straightness measurement of bars and tubes
PRECISE STRAIGHTNESS MEASUREMENT OF ROUND WORKPIECES

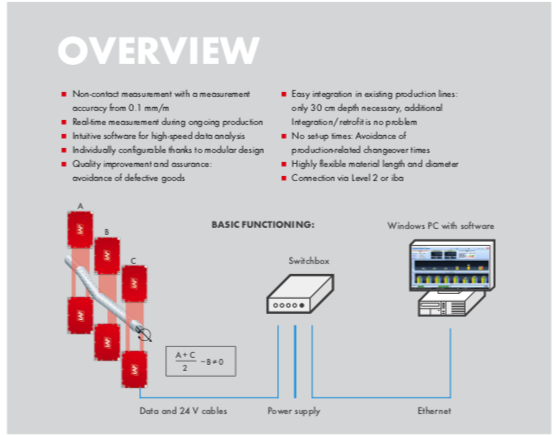

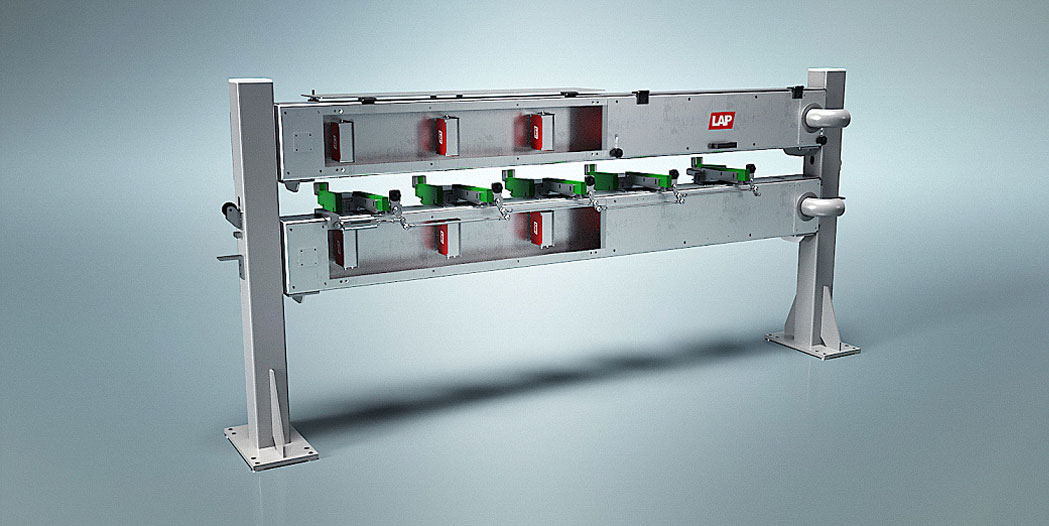

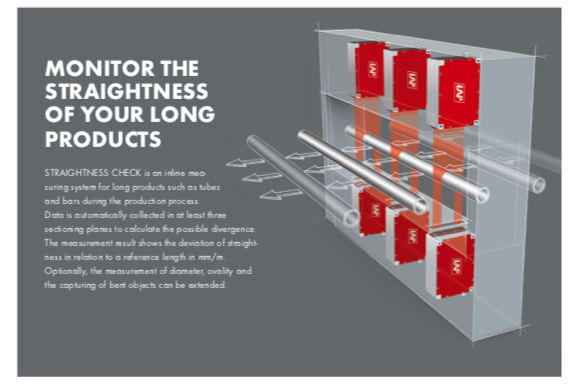

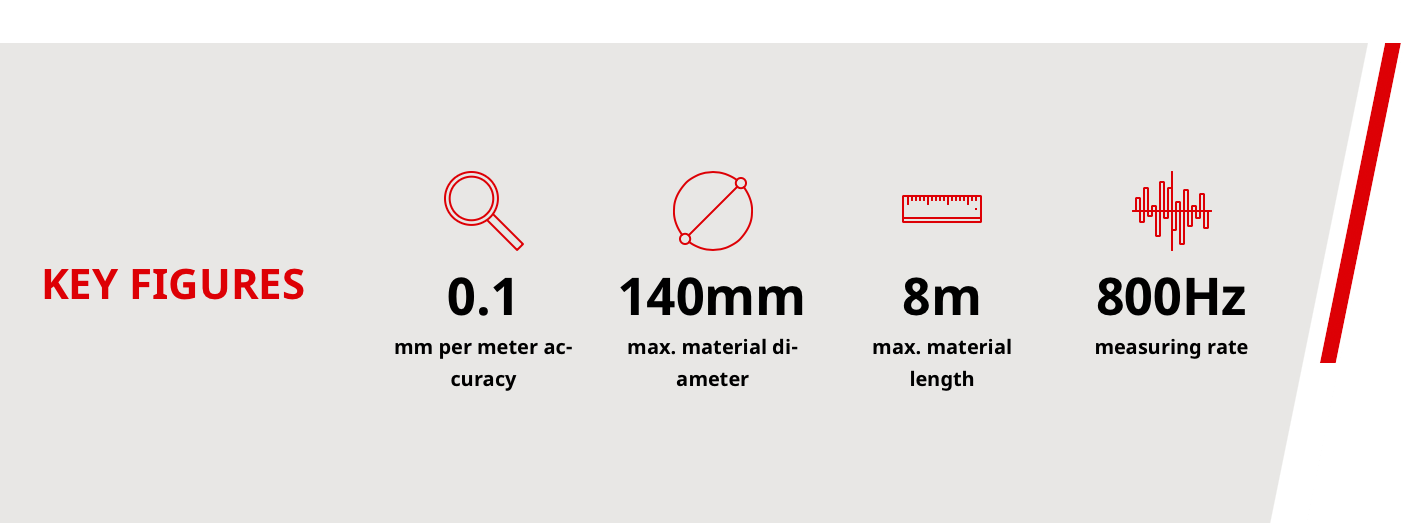

With our innovative laser technology, you can check the straightness of a round profile inline and with a single measuring routine. The measuring frame with will be installed directly in your existing line and contains at least three pairs of measuring sensors. The object rolls through the measurement system in the inspection process and is scanned. The measurement result shows the deviation of the straightness in mm related to a reference length of one meter. Optionally, you can determine additional parameters such as length and ovality of the object.
Together for your success
This process is unique on the market and was developed with our partner Sema Systemtechnik. You receive a verifiable quality assurance of your rods or pipes in the current production. The modular design allows individual configurability and can be easily integrated into the existing system. Benefit from the competence and experience of two strong partners.
FEATURES OF THE STRAIGHTNESS CHECK X-LINE
FLEXIBLE PRODUCT SIZES
The controlled material guidance during the entire production process allows rods and tubes of different sizes and lengths to be tested without difficulty.
NON-CONTACT MEASUREMENT
With our optical method, you can detect the straightness non-destructively and avoid any mechanical wear on the measuring system or the product.
MATERIAL INDEPENDENT
The Straightness Check X-Line measures independently of physical or chemical material properties, color or reflectance. The measuring system can thus be used flexibly.
X-LINE SOFTWARE

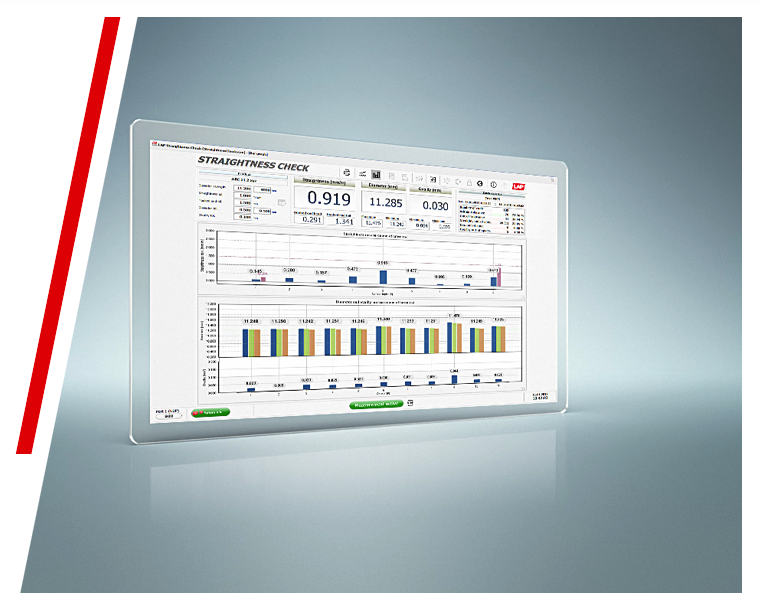

The intuitive software reads the measured values and calculates the straightness and the diameter during the process. The measurement results are evaluated based on the product specifications and tolerance violations signaled via digital outputs.

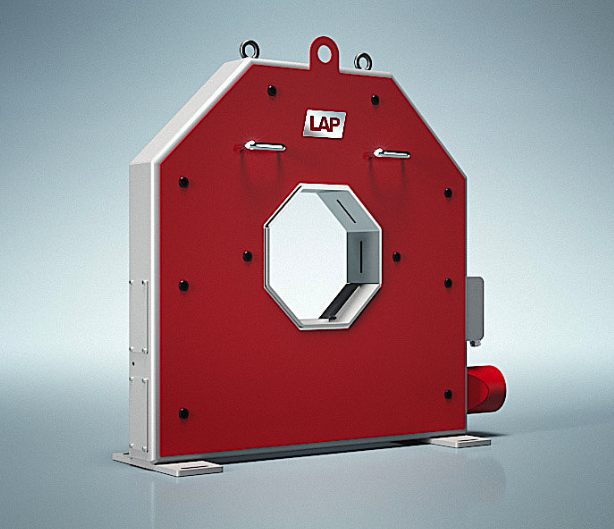

CONTOUR CHECK SHAPE
3D measurement of rolled long products by means of laser light section sensors
THE PIONEERING MEASUREMENT SYSTEM FOR OPTICAL CONTOUR CAPTURING AND SURFACE INSPECTION OF YOUR STEEL PROFILE.
Contour Check Shape has proven itself in hot rolling of long products and is an essential part of the rolling process in many factories. It checks hot and cold steel profiles with the help of three-dimensional surface reconstruction. Thus, it records geometrical errors due to rolling defects including surface defects like scale seams, shells or roller outbreaks.
The innovation lies in the optimized laser light section sensors which LAP constructs with its own laser technique and high-end industry cameras. Four cameras continously scan an object and form up to 2000 complete profiles per second at the same time. The camera with high-speed image recording captures the laser line while the often still glowing steel enters the measuring field. The laser light section sensors are even able to measure in indentations, corners, and between webs, Regardless of the profile form (round, square, flat or hexagonal), the Contour Check Shape supports your production process and verifiably reduces scrap. One additional feature is the precise measurement of rebar whereby measuring values like the contour of the core, the rib height and the weight per meter are accurately calculated.
CONTOUR CHECK SHAPE PROFILE MEASUREMENT BY LASER LIGHT SECTION SENSORS
Learn more about the CONTOUR CHECK SHAPE features.
FEATURES OF THE CONTOUR CHECK SHAPE
QUALITY CONTROL
Only quality material which meets your specifications leaves the factory, giving you full process control and increased efficiency.
ROLLING DEFECTS RECOGNITION
The system automatically detects and classifies rolling errors so that the operator can make optimum adjustments to the rollers.
SURFACE DETECTION
The evaluation of the surface quality enables the classification of the severity of the defects, marks the specific clusters and, if necessary, adjusts the material.
SOFTWARE SMART CORE PRO
The software offers the unique functionality of virtually rotating a round profile into alignment of the rolling mill to directly measure the real rolling defect. You can also configure the user interface individually.

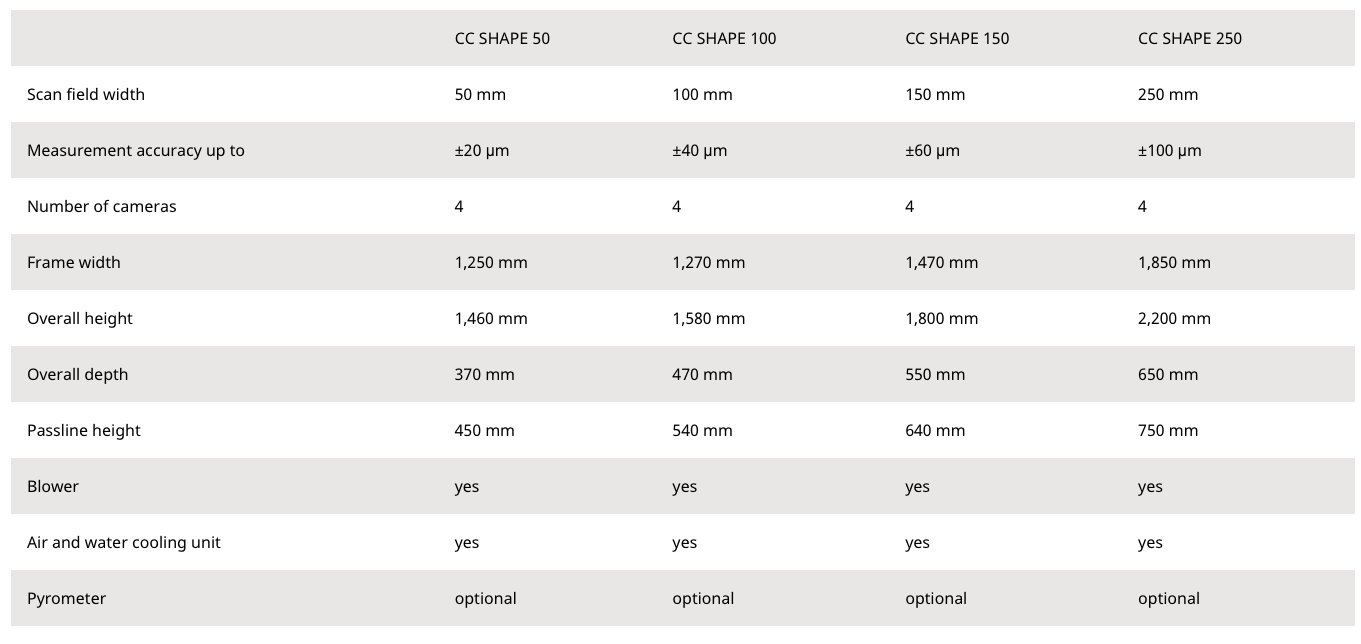

TECHNICAL DATA

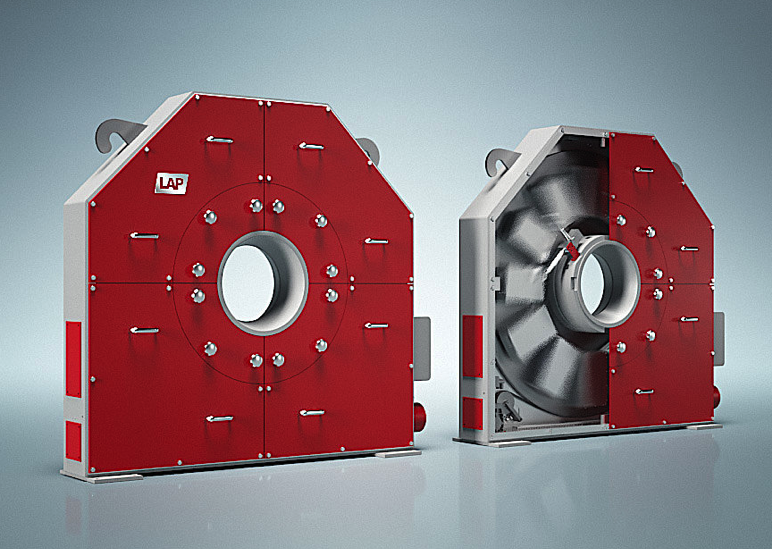

CONTOUR CHECK ROUND & EDGE
Robust laser measurement system for contour detection of round and square profiles
OUR WORLDWIDE APPROVED SOLUTION FOR REAL-TIME PROFILE MEASUREMENT
Laser measuring systems are of central importance for rolling mills to check the contours of steel profile for defects during the production process. A slight deformation on the surface of the profiles reduces the quality of the product, and in the worst case, a broken roll can even destroy the entire batch. With our systems Contour Check Round & Edge you identify and evaluate deviations at an early stage. Increase the process efficiency of your production - regardless of temperature and profile shape.
Contour Check Round is the standard solution for measuring round profiles and rebar. Three- and six-axis versions can also accurately record profiles from three point rolling processes.
Contour Check Edge uses sensors on a base plate that rotates in an oscillating manner. In this way, square, flat or hexagonal profiles are measured. Both systems are based technically on the shadowing principle.
CONTOUR CHECK EDGE FOR REBAR, ROUND, RECTANGULAR AND HEXAGONAL PROFILES
Learn more about the CONTOUR CHECK EDGE features.
FEATURES OF THE CONTOUR CHECK ROUND & EDGE
DEFECT VISUALIZATION IN REAL TIME
Tolerance deviations and rolling errors are visualized early. This increases your production quality and allows you to intervene in time, even before scrap occurs.
ARCHIVING
All values are stored in a database. You have access to the measured values for all orders, and loose or individual products. For analysis purposes, you can view all data again at any time.
OPTIMIZED PRODUCTION CONTROL
The use of our measurement system and the associated real-time control of your production verifiably optimize the entire production process.

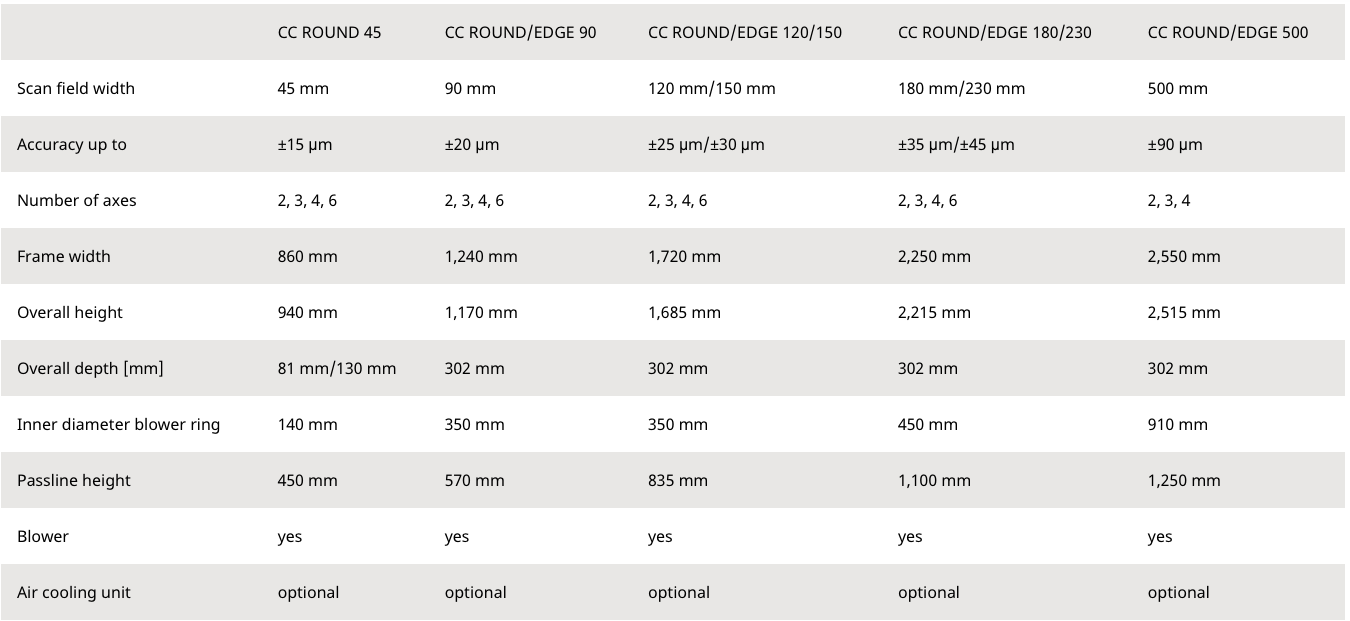

TECHNICAL DATA

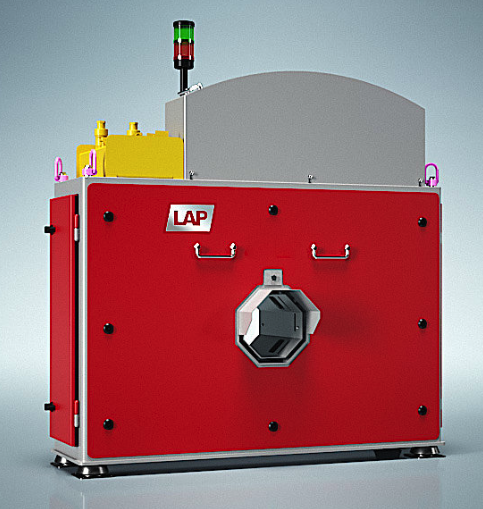

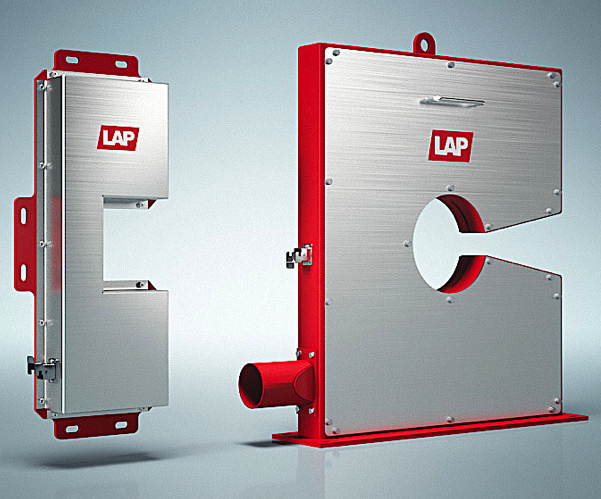

CONTOUR CHECK BAR & TUBE
Precise inline geometry measurement of medium-sized, round cross-sections
LASER MEASUREMENT SYSTEM FOR STANDARDIZED QUALITY CONTROL ON ROUND PROFILES AND REBAR

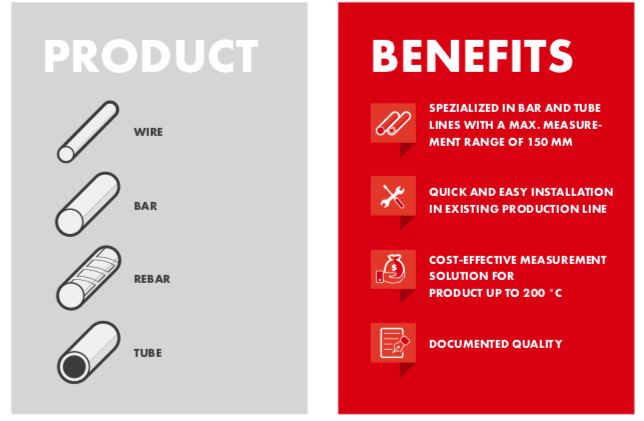

Increasing product quality is a major challenge in rolling mills. By means of a laser-based measurement system, the goal of a 100% geometry inspection can be achieved. The Contour Check Bar & Tube scans the steel profile inline and can determine diameter and ovality within seconds. The precise contour measurement also eliminates the need for many sample cuts, thus significantly reducing the cost of quality assurance.

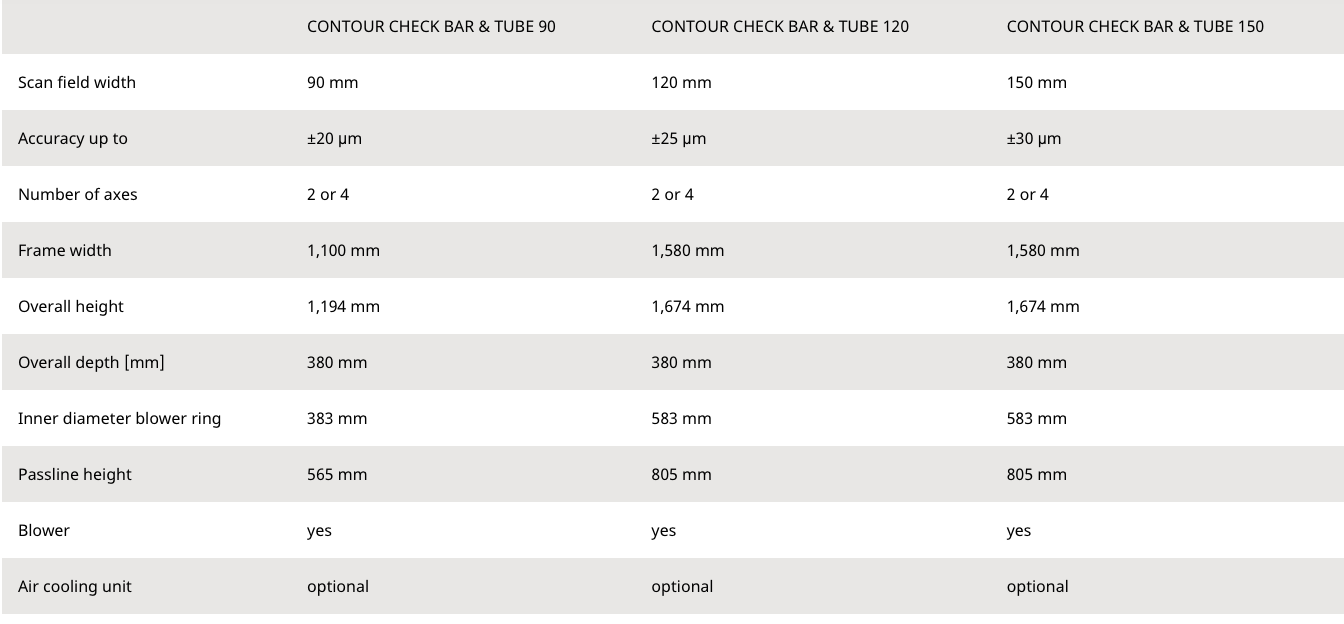

In addition, the Contour Check Bar & Tube has the measuring ranges of 90 mm, 120 mm, and 150 mm, and can be used at material temperatures up to 200 °C. The software application developed by LAP analyzes quality-relevant errors and visualizes the measurement data in real time. Users can also intervene optimally in the ongoing rolling process in accordance with Industry 4.0.
FEATURES OF THE CONTOUR CHECK BAR & TUBE
QUICK RETURN ON INVESTMENT
Proven LAP technology combined with a clear and industry-standard equipment guarantees fast arming of the measuring system within a very short time.
FAST AND EASY INSTALLATION
The Contour Check Bar & Wire is delivered fully assembled as a ready-to-install solution. Thanks to its ease of use, the system is quickly integrated into your production line.
INCREASED PRODUCTIVITY
By keeping the cycle times, you can increase your throughput and thus increase productivity. This is supported by the display of the measured data in real time.

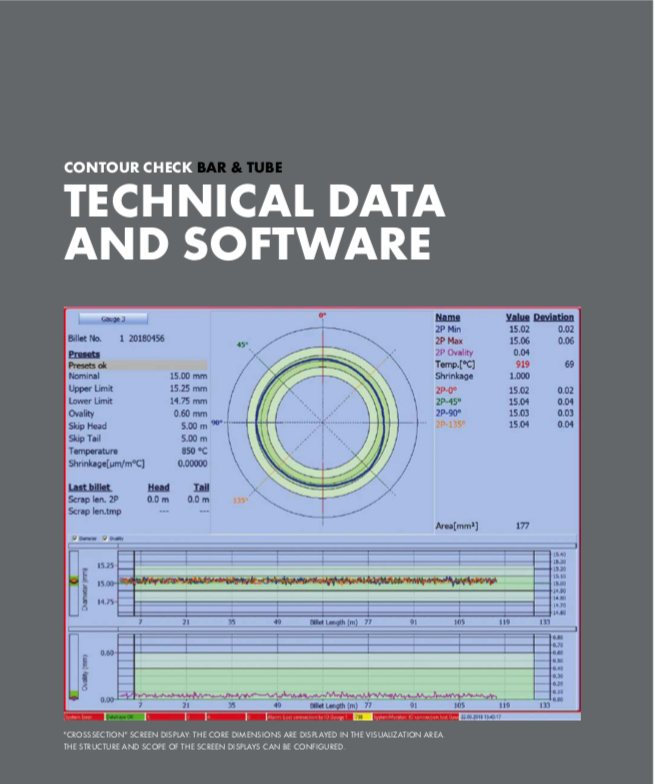

SOFTWARE SMART CORE ADVANCED
The software visualizes the core dimensions. In addition, the system warns of imminent tolerance violations, which can also be an indicator of a defect on the rollers.
TECHNICAL DETAILS
CONTOUR CHECK WIRE
Compact measurement system for steel wire and rods with small diameters
WIRE AND ROD PROFILE MEASUREMENT IN REAL TIME

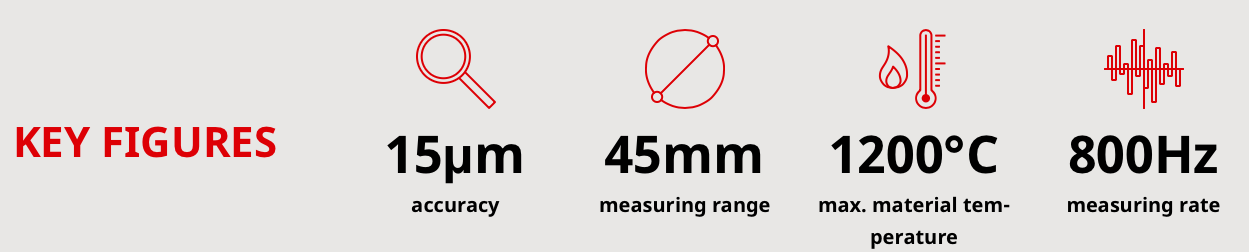

A glowing hot wire is pulled through the rolling mill at about 120 meters per second during ongoing production. Speed, high temperatures and dirt are special challenges for a high-precision measuring system. Our solution is the Contour Check Wire. It is specially designed for the geometric measurement of wires, rods and rebar and, at 800 Hz, offers the optimum measuring rate for accurate data acquisition. In the uniaxial version, you can check the diameter; in the two- to three-axis version, the ovality can also be determined. The small dimensions and light weight allow a quick and easy integration of the Contour Check Wire into the existing line.
FEATURES OF THE CONTOUR CHECK WIRE
COMPACT FRAME
With low costs and a compact design, the Contour Check Wire is precisely tailored to the needs of smaller factories.
TEMPERATURE STABLE
The 2- and 3-axis Contour Check Wire is temperature stable. Even at material temperatures up to 1200 °C, the measurement system records accurate and reliable data.
FAST SETUP
It’s simple application allows a short training period. After installing the software and connecting the cooling and PCs, the measurement can start immediately.
SOFTWARE SMART CORE BASIC
Our control software clearly presents the measurement results in real time and can be easily integrated into the existing IT structure.

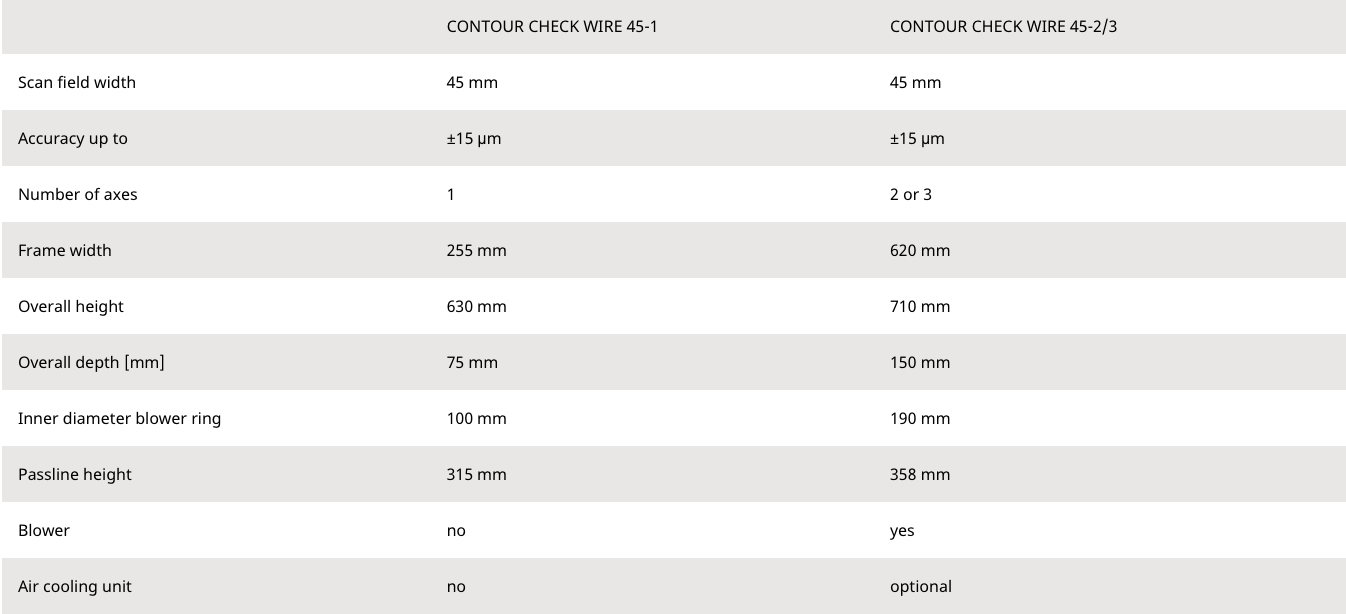

TECHNICAL DATA
